Wheel loader XCMG LW300FN

Model highlights

• High productivity, economical fuel consumption and strong dynamics.
• A three-element torque converter and a fixed-shaft power-shift gearbox — a modern and reliable combination.
• A 2660 mm wheelbase makes the machine easy to handle and suitable for sites of different sizes.
• The high-strength steel bucket resists wear and impact loads.
• A wide range of configurations and a full set of attachments — for different climate zones and the demands of different working modes.
• A cab with air conditioning, sound insulation and noise reduction provides comfortable working conditions.

Traction performance

• Tractive effort of at least 9 tf and breakout force of at least 13 tf — outstanding driving power.
• A minimum turning radius of 5165 mm (at the tyre centre) — highly suited to confined sites.
• According to XCMG, the LW300FN is the industry sales leader among individual 3 t class wheel loader models.

Power and drive system

• The engine meets the China-II emission standard: high performance with low fuel consumption.
• High power and a large torque reserve factor allow the machine to absorb momentary overloads and to realise its full dynamics under heavy loads and increased load capacity work.

Gearbox and torque converter

• A fixed-shaft power-shift gearbox — a reliable and modern design.
• The three-element torque converter ensures maximum use of the engine power.
• The drive shaft flange follows an international standard with an enlarged bolt circle diameter: higher torsional resistance for high-strength, continuous and heavy-duty work.

Drive axles

• The heavy-duty drive axle with full, thickened load-bearing sections has excellent overload capability and meets high-strength, high-load requirements.

Frame and bucket

• Structural assemblies and parts are calculated by the finite element method: stress concentration is reduced, local weak points are eliminated, and the design meets the requirements of different working modes.

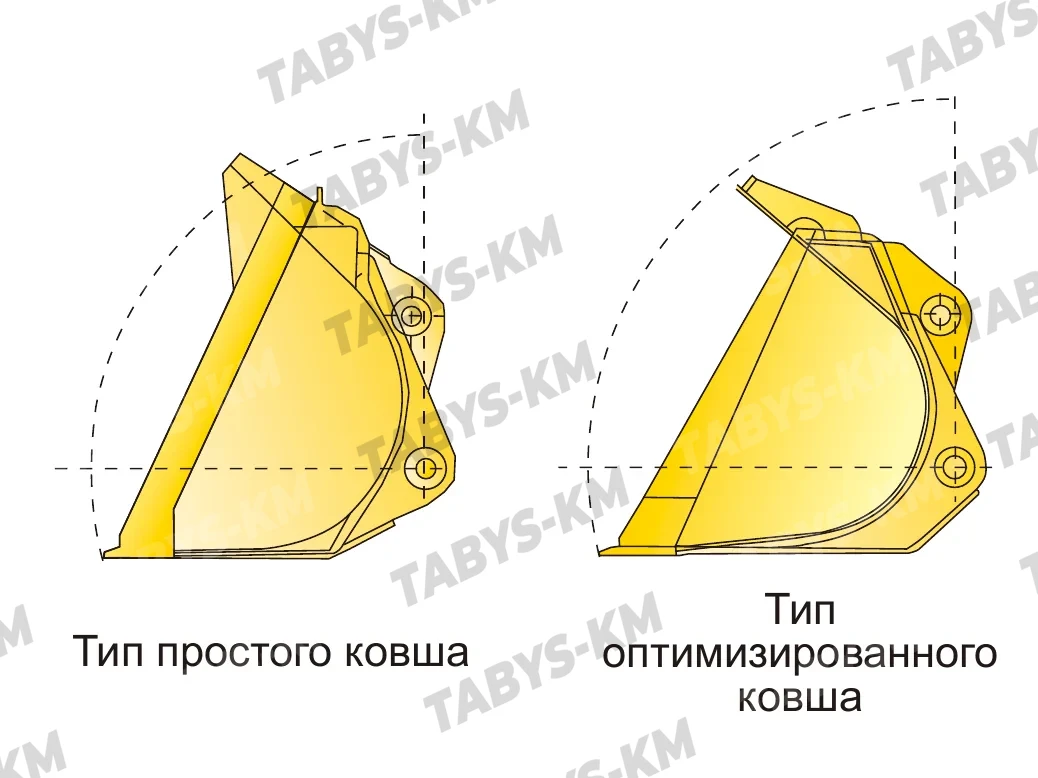

• The bucket shape is optimised: an extended floor, a sharp cutting edge, easy penetration and full filling of the bucket with material.
• The opening angle and the cross-section are reduced — for easier penetration and lifting.
• The standard bucket is designed for different working modes. Also available are a rock bucket — for digging and breaking out hard materials, wear- and impact-resistant — and a coal bucket — of increased capacity for bulk materials, with high productivity.

Hydraulics and electrical equipment

• First-class hydraulic components are used: low pressure losses, low heat generation and high reliability of assemblies and parts.
• Hydraulic hoses of international quality: heat resistance, compression resistance and a long service life.
• The hydraulic line uses a double seal to the international DIN standard — a 24° cone plus an O-ring — which effectively eliminates leaks.
• The wiring harnesses are made of imported material with optimised routing, which ensures the reliability of the electrical circuits.

Operator's cab

• The cab matches the level of a comfortable car cabin: spacious, with wide visibility and no blind spots, which ensures safe driving.
• The buttons and controls make any operation easy to perform; the trim is neat and the floor is fully covered with rubber.
• A full-visibility rear window, a high-mounted rear lamp and an audible reversing alarm provide excellent visibility and safety when reversing.

Repair and maintenance

• The frame structure and an engine hood that tilts upwards through a wide opening angle simplify inspection and servicing of the engine and radiators.

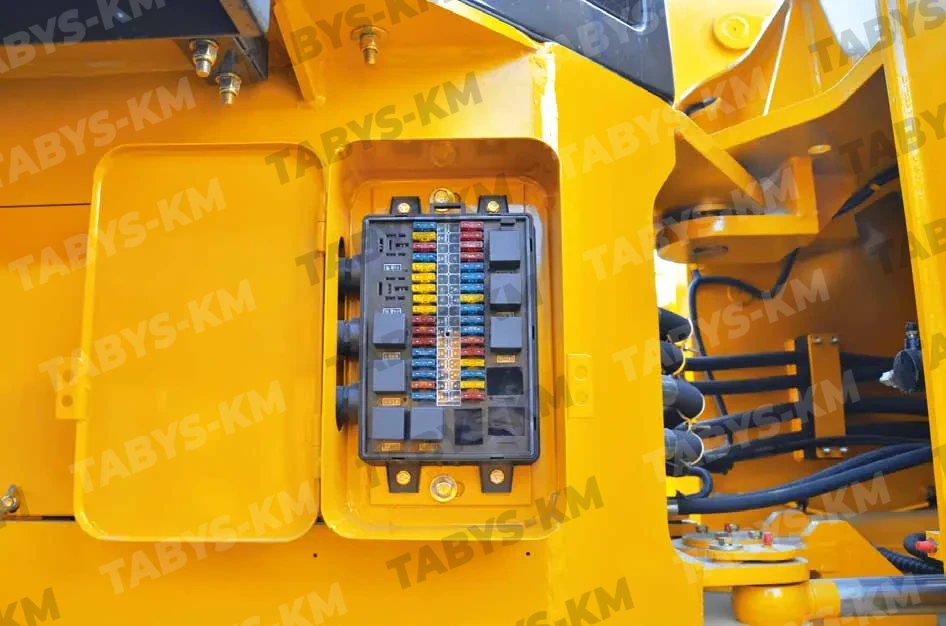

• A centralised fuse box and a consolidated electrical system speed up servicing.

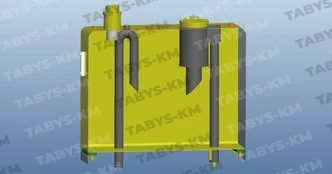

• An independent oil-channel layout for the hydraulic tank makes repair and maintenance convenient.
